Features

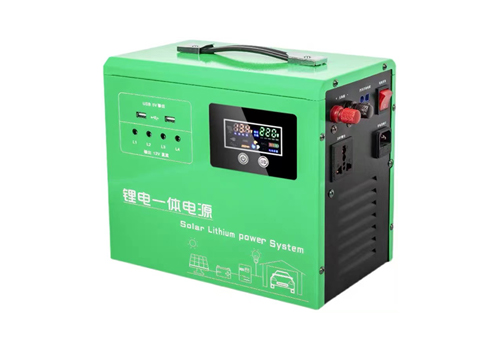

1.Integrated PV inverter with built-in lithium iron phosphate battery pack and mains charger;
2. Pure sine wave AC output, wide application range, strong load capacity;
3. Intelligent CPU control technology, high-precision SMT processing technology, excellent product performance;
4. Charging type/battery/lithium battery charging mode can be selected, convenient and practical;
5. Intelligent fan control, safe and reliable, low loss and energy saving;
6. LCD display, real-time display of equipment parameters, operating status is clear at a glance;
7.Output overload, short circuit protection, over temperature protection, battery level protection, various automatic protections and alarm prompts.
Parameters
|
Model |
LI-300 |
LI-600 |
|
Inverter output voltage |
AC 220V ±5% |
|
|
Output frequency |
50 ± 3HZ |
|
|
Conversion efficiency |
>90% |
|
|
Maximum continuous power |
350W |
600W |
|
Peak power |
500W |
1000W |
|
No load current |
<0.3A |
<0.5A |
|
Built-in controller |
12V/30A |
|
|
Suggest panel |
300W-400W/18V |
|
|
Lithium battery |
25Ah/Lifepo4 |
50Ah/Lifepo4 |
|
USB output voltage |
5± 0.3V |
|
|
USB output current |
2A/4A |
|
|
DC output port(L1~L4) |
12V/10A |
|
|
Car start power |
Have，EC5 connector |
|
|
Light a cigarette butt |
Optional, EC5 to cigarette butts |
|
|
Overload/short circuit protection |
Have |
|
|
High temperature protection |
Have，90℃ protection |
|
|
Low voltage alarm |
10.5V± 0.3V |
|
|
cooling method |
Fan cooling |
|
|
Model |
LI-1000 |
|
|
Input voltage |
155V-265V |
|
|
Inverter output voltage |
AC 220V ±5% |
|
|
Output frequency |
50/60 ± 3HZ |
|
|
Output waveform |
Pure sine wave |
|
|
Conversion time |
<6ms |
|
|
Conversion efficiency |
>85% |
|
|
Maximum continuous power |
1000W |
|
|
Peak power |
1200W |
|
|
Charge voltage |
14.6V |
|
|
No load current |
<1A |
|
|
Built-in controller |
12V/30A |
|
|
Suggest panel |
200W-360W/18V |
|
|
Lithium battery |
specification |
100Ah/Lifepo4 |
|
Cycle life |
>2000次 |
|
|
Use environment |
10℃~60℃，<10℃ Reduced capacity
|
|
|
Nominal voltage |
14.2V |
|
|
Battery voltage |
12.8V |
|
|
End of discharge voltage |
10V |
|
|
USB output voltage/current |
5± 0.3V/2A(per USB) |
|
|
DC output port(L1~L4) |
12V/10A |
|
|
Car start power |
Have，EC5connector |
|
|
Light a cigarette butt |
Optional, EC5 to cigarette butts |
|
|
Overload/short circuit protection |
protection after 110%~120%/30S overload, protection after 150%/500ms overload. |
|
|
High temperature protection |
Have，90℃ protection |
|
|
Low voltage alarm |
10.5V± 0.3V |
|
|
cooling method |
Fan cooling |
|
